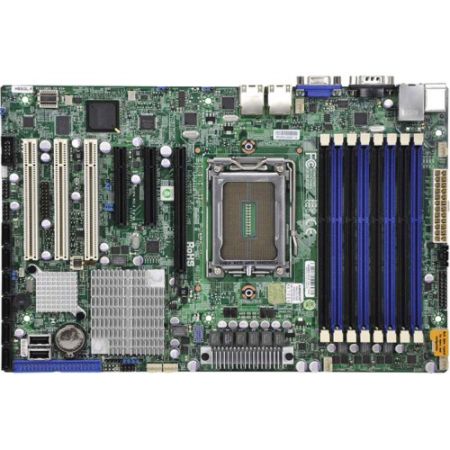

Supermicro H8SGL Server Motherboard - AMD SR5650 Chipset - Socket G34 LGA-1944 - Retail Pack Item # 630333
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
630333
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The H8SGL serverboard is based on the AMD SR5650/SP5100 chipset. Chipset functions as a Media and Communications Processor (MCP). Controllers the system memory are integrated directly into AMD Opteron processors.
Product Details
| Item # | 630333 |
| Manufacturer # | 10548661 |
| Number of SATA Interfaces | 6 |
| Number of PS/2 Ports | 2 |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection |
| Onboard LEDs Header | Yes |
| Total Number of Onboard USB Ports | 2 |
| RAID Levels | 0; 1; 1+0 |
| Memory Speed Supported | 1.33 GHz; 1.07 GHz; 800 MHz |
| Processor Supported | Opteron Dodeca-core; Opteron Octa-core |
| BIOS Features | DMI 2.3 support, ACPI 2.0 support, SMBIOS 2.3 support |
| Compatible Processors | Opteron 6000 series |
| Sleep / Wake Up | Keyboard wake up, wake on LAN (WOL) |
| Total Number of USB Ports | 2 |
| BIOS Type | AMI |
| Number of PCI Express x4 Slots | 1 |
| Serial Port | Yes |
| Internal Interfaces | 4 x USB 2.0 ¦ 2 x USB 2.0 - Type A ¦ 1 x serial |
| Graphics Controller Manufacturer | Matrox |
| Registered or Buffered | Registered, unbuffered |
| width | 12 in |
| package contents | H8SGL Server Motherboard; Manual; 1 x 9-pin Serial Port Cable; 1 x ATA 66/100 IDE LP Cable; 6 x 2ft. Amphenol, SATA Cable; 1 x Support CD; 1 x Standard I/O Shield; 1 x Retention Bracket |
| Number of Memory Slots | 8 |
| Storage Interfaces | AMD SP5100 : SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 |
| depth | 8 in |
| Product Name | H8SGL Server Motherboard |
| Total Processor Supported | 1 |
| Total Number of PCI Express Slots | 1 |
| HyperTransport Speed | 3200 MHz |
| manufacturer | Supermicro Computer, Inc |
| 64-bit Processing | Yes |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz |
| VGA | Yes |
| Max Processors Qty | 1 |
| RAID Supported | Yes |
| brand name | Supermicro |
| Dedicated Video Memory | 16 MB DDR2 SDRAM |
| Max Size | 128 GB |
| Maximum Memory | 128 GB |
| Supported RAM Integrity Check | Non-ECC, ECC |
| controller type | Serial ATA/300; Ultra ATA |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Gigabit Ethernet | Yes |
| Network Controller | 2 x Intel 82574L |
| Processor Technology | HyperTransport Technology |
| Network (RJ-45) | Yes |
| Number of IDE Interfaces | 1 |
| Number of USB 2.0 Ports | 2 |
| Graphics Controller | Matrox MGA G200 |
| Package Type | Retail |
| PS/2 Port | Yes |
| Memory Standard | DDR3-1333/PC3-10600; DDR3-1066/PC3-8500; DDR3-800/PC3-6400 |
| Number of Total Expansion Slots | 4 |
| Processor Socket | Socket G34 |
| Chipset Model | SR5650 |
| Chipset Manufacturer | AMD |
| Graphics Controller Model | G200 |
| form factor | ATX |
| Memory Technology | DDR3 SDRAM |
| Graphics Controller Memory | 16 MB |
| Onboard Video | On-board Video Chipset |
| model name | H8SGL |
| Number of PCI Slots | 3 |
| Show More ▾ |
